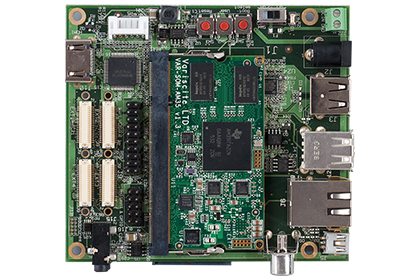

Texas Instruments AM3517 / AM3505
Cortex™-A8
1 Core
600 MHz
64 - 256 MB DDR2
256 - 512 MB SLC NAND
PowerVR SGX530 Accelerated 2D and 3D
1x CPI
1400 x 1050 24-bit
Resistive, Capacitive (capacitive touch is natively supported through I2C in the base configuration)
Analog
Yes
x2
USB 2.0 : 1x Host, 1x OTG
x4, up to 3.6 Mbps
x2
x1
1-Wire/HDQ
on-SoM
GPMC
10/100 Mbps
Yes
Yes
6.0R3 and 7.0
67.8 x 35.6 mm
3.3 - 6.0 V
3.3 V
0 to 70°C
-20 to 70°C
-40 to 85°C
05 - AM3505, 17 - AM3517
DDR Size: 64 MB : 64R, 128 MB : 128R, 256 MB : 256R
Nand flash size: 256 MB : 256R, 512 MB : 256R
Ethernet Controller
Touch panel controller.
Note: Capacitive touch is natively supported through I2C in the base configuration
Audio Codec
Built-in Real Time Clock
1st USB 2.0 Host controller
2nd USB 2.0 Host controller
C : 0 to 70°C, E : -20 to 70°C, I : -40 to 85°C
C - CE EBoot, L - Linux Uboot, A - Android
