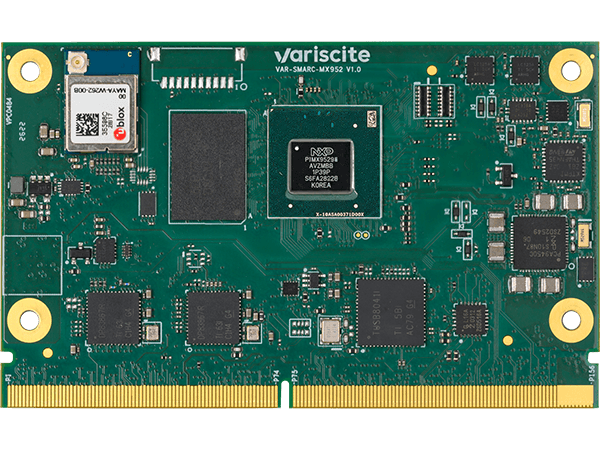

VAR-SMARC-MX952
NXP i.MX952
Optimized for AI/ML and vision applications, this i.MX 952 System on Module / Computer on Module is SMARC-compliant and features an integrated Neural Processing Unit (NPU), image signal processing (ISP), high-end graphics, and advanced functional safety and security features.
The VAR-SMARC-MX952 leverages the NXP i.MX 952 SoC and its energy-flex architecture, combining heterogeneous compute resources that include up to 4 Arm Cortex®-A55 cores running at 1.7GHz and two dedicated real-time processors: an Arm Cortex-M7 operating at 800MHz and an Arm Cortex-M33 at 333MHz.
The SoM provides certified Wi-Fi 6 supporting dual-band 802.11ax/ac/a/b/g/n, while 802.15.4 and Bluetooth/BLE, dual GbE interfaces with TSN, high-performance 2D/3D graphics, 4K display support and video encode/decode, MIPI-CSI camera connectivity, PCIe Gen 3.0, USB, CAN-FD, and support for industrial temperature ranges.
The VAR-SMARC-MX952 is part of Variscite's VAR-SMARC Pin2Pin family, enabling scalability across a wide performance range.
* The Pin2Pin compatibility depends on pinmux options; please verify the detailed pinout table in the related SoM to confirm compatibility is maintained in your specific design.
** The VAR-SMARC-MX952 is currently under development. The specifications provided here are preliminary and subject to change without notice.
333Mhz Cortex-M33
2D GPU
