Highlights
Frame.svg
CPU
Up to 1.4GHz Quad Cortex-A53 Texas Instruments Sitara AM62P5
Frame_1.svg
High Speed Interfaces
2x USB2.0, 2x GbE
Frame_2.svg
Certified WiFi/BT
Wi-Fi 6 802.11 ax/ac/a/b/g/n with optional 802.15.4 and BT/BLE 5.4
Frame_4.svg
Temperature range
-40 to 85°C
Real time CPU
Real-time CPU
800MHz Cortex-R5F
calendar.svg
Product Longevity
2040
Group-1000002196.svg
Pin2pin Family
VAR-SOM Pin2Pin family
Scopri di più
System on Module support
Assistenza
Siamo con te passo passo, dal concept del prodotto al lancio... e oltre. Assistenza gratuita e immediata direttamente dagli esperti R&D Variscite.
Specifiche
CPU Name

Texas Instruments AM62P5

CPU Type

Cortex-A53

CPU Cores

4 Cores

CPU Clock (Max)

Up to 1.4GHz

Real-time co-processor

800MHz Cortex-R5F

Integer performance (DMIPS)

Up to 12,880

RAM

1 – 8 GB LPDDR4

eMMC

8 – 128 GB

Multimedia
2D/3D Graphics Acceleration

3D GPU with OpenGL ES 3.2 & Vulkan 1.2

Video Encode / Decode

H.264/H.265 Video Encoder/Decoder

Camera Interfaces

MIPI-CSI2

Display
DSI

MIPI-DSI 3840x1080@60fps 24-bit

LVDS

2x LVDS up to 3840x1080@60fps 24-bit

Touch controller

Resistive, Capacitive

Audio
Headphone driver

Yes

Microphone

Digital, Analog (stereo)

Digital audio serial interface

3 x I2S(McASP)

Line In/Out

Yes

Connectivity
SD / MMC

x1

USB Host / Device

USB2.0: 2x OTG

UART

x9, up to 3.6 Mbps

I2C

x5

SPI

x5

CAN Bus

4x CAN/CAN-FD (Flexible Data-Rate)

RTC

On carrier

JTAG

x1 (via optional header)

QSPI

x1 OSPI/ x2 QSPI

GPMC

GPMC for external 8/16-bit parallel bus

Networking
Ethernet

2x 10/100/1000 Mbps

Wi-Fi

Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n with optional 802.15.4

Bluetooth

BT/BLE 5.4

Linux

Yocto, Debian

Android

Yes

Mechanical Specifications
Dimensions (W x L)

67.8 x 33mm

Electronic Specifications
Supply voltage

3.3V

Digital I/O voltage

3.3V

Environmental Specifications
Extended operating temperature

0 to 85°C

Industrial operating temperature

-40 to 85°C

Storage temperature

-40 to 85°C

Storage humidity

5% to 95%

VAR-SOM-AM62P5[x]_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[TP]_[WBD/WBE]_[OSPI/GPMC/MMC2]_[RG2CM]_[DSI]_[LD0]_[X]T
AM62P5[x]:

Processor type:
TI AM62P54 quad core: 4

[xxxx]C:

CPU clock speed: 1400MHz: 1400C

[xxxx]R:

LP-DDR4: 1024 MB: 1024R, 2048 MB: 2048R, 4096 MB: 4096R, 8192 MB: 8192R

[xx]G:

eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G

[AC]:

Audio Codec

[EC]:

GbE PHY (second port always via RGMII)

[TP]:

Resistive touch panel controller

[WBD/WBE]

WBD: Built-in certified single band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4
WBE: Built-in certified single band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 + 802.15.4

[OSPI/GPMC/MMC2]

Default: No extra interface
OSPI: Extra Octa/Quad/Dual SPI
GPMC: Extra parallel bus
MMC2: Extra SDIO/MMC2 (available only without WB/WBD)

[RG2CM]

Default: 3.3V over the RGMII pins
RG2CM: 1.8V over the RGMII pins

[DSI]

Default: Dual LVDS (#0 and #1)
DSI: DSI output instead of LVDS #0

[LD0]

Default: LVDS #0 outputs on its default pins
LD0: LVDS #0 instead of MCU/WKUP pins (available only when DSI mode is selected)

[x]T:

E: -25 to 85°C, I : -40 to 85°C

Le nostre partnership di lunga data

I nostri stretti rapporti con i principali fornitori di tecnologia offrono ai nostri clienti un accesso in anteprima alle ultime soluzioni avanzate: i tuoi progetti partiranno da una base solida anche in prospettiva futura.

Chiedi un preventivo personalizzato

Compila i campi di seguito e un nostro rappresentante ti contatterà a breve






    System on Module Platform

    Quantità previste


    Thank you for submitting your Quote
    Want to start your evaluation ASAP?
    Order a Kit

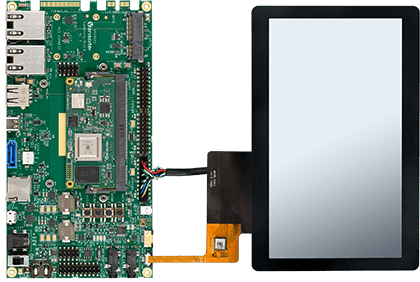

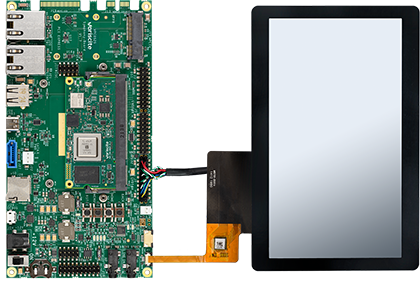

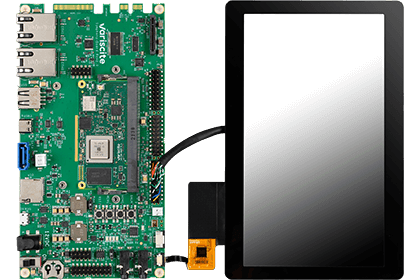

    VAR-SOM-AM62P Evaluation Kits
