Specifiche

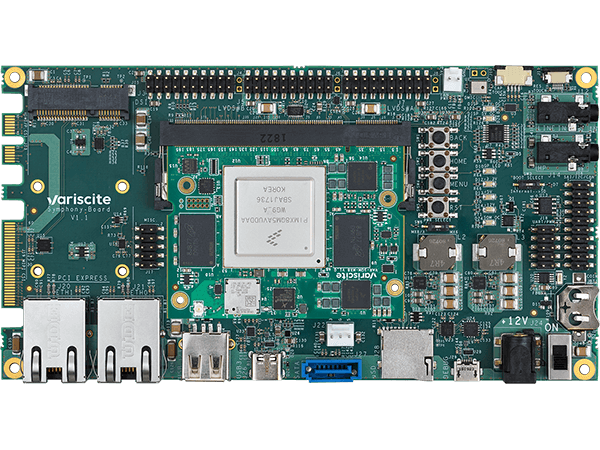

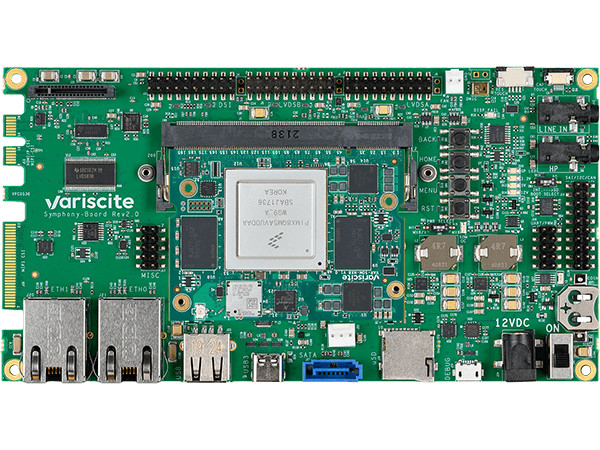

Starter Kit

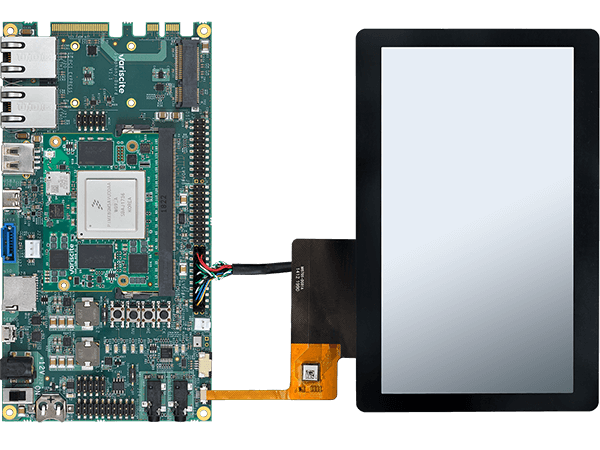

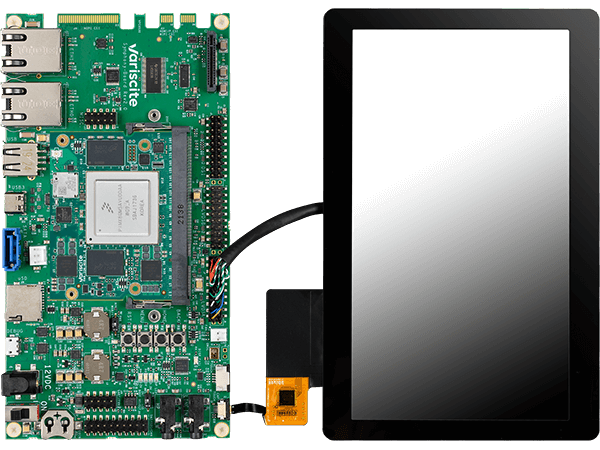

Development Kit
Included SOM
Included Carrier Board
Display

7" WVGA

Touch Panel

Capacitive

Micro-USB Debug Cable
Ethernet Cable
12V Power Supply
Heat Sink
Boot/Rescue SD Cards
Carrier Board Design Package
Camera Module

Optional - VCAM-5640S-1ST

Optional - VCAM-5640S-1ST

Part number

VAR-STK-MX8

VAR-DVK-MX8

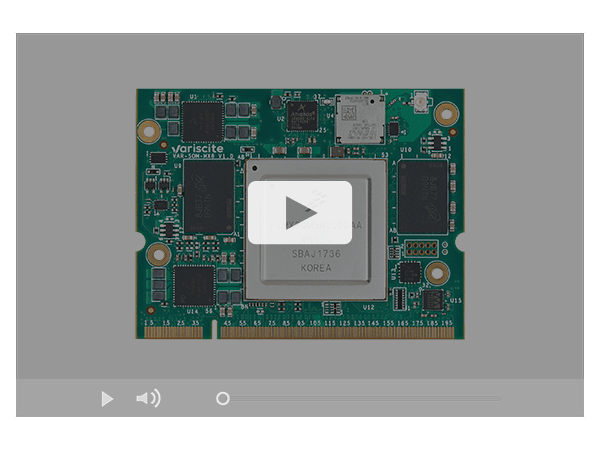

System on Module
CPU Name
CPU Type

2x Cortex™-A72 + 4x Cortex™-A53

CPU Cores

6

CPU Clock

1600MHz Cortex A72 with 1200MHz Cortex A53

RAM

4 GB LPDDR4

eMMC

16 GB

Ethernet

GbE PHY

Audio codec

Yes

OS support

Linux / Android

Temperature

-25 to 85°C

Part number

VAR-SOM-MX8QM_1612C_4096R_16G_AC_EC_TP_ET

Symphony-Board
Carrier Board
SO-DIMM200

Supporting the VAR-SOM-MX8

LVDS

2x Header, 18-bit / 24-bit

DP

1.3 via display extension board (not included)

DSI

Header

Backlight Driver

PWM Control

Resistive touch panel

4-wire touch panel (4-pin FFC/FPC)

Capacitive touch panel

Capacitive touch panel (6-pin FFC/FPC)

Headphone

3.5 mm connector

Line - in

3.5 mm connector

Digital microphone

on-board

PCI-Express

mini-PCIe connector

VAR-[DVK / STK]-MX8_[x]O
STK

Starter kit

DVK

Development kit

[x]O

L: Linux, A: Android
