Specifiche

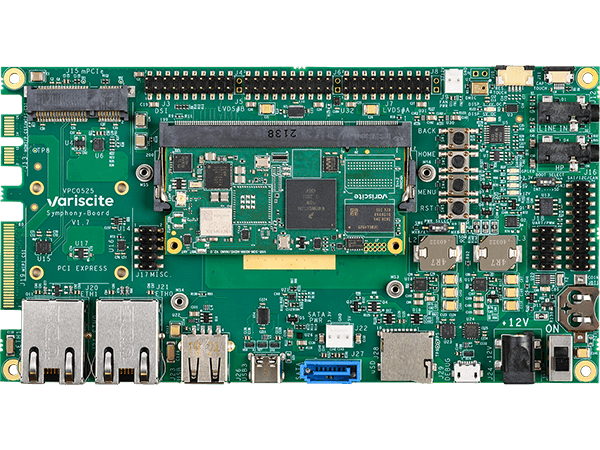

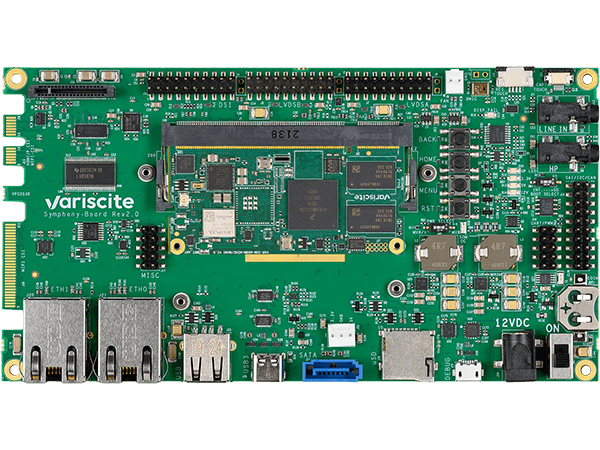

Starter Kit

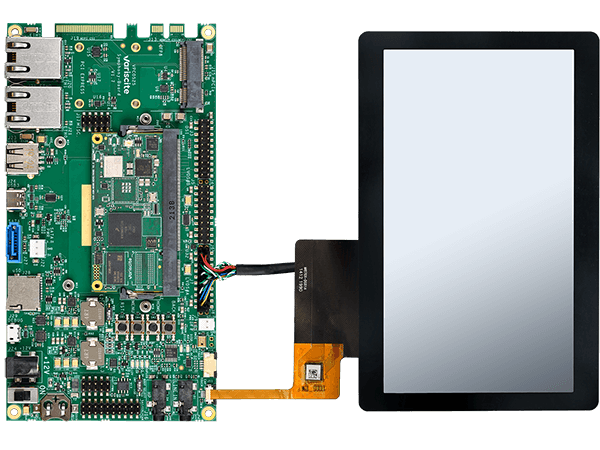

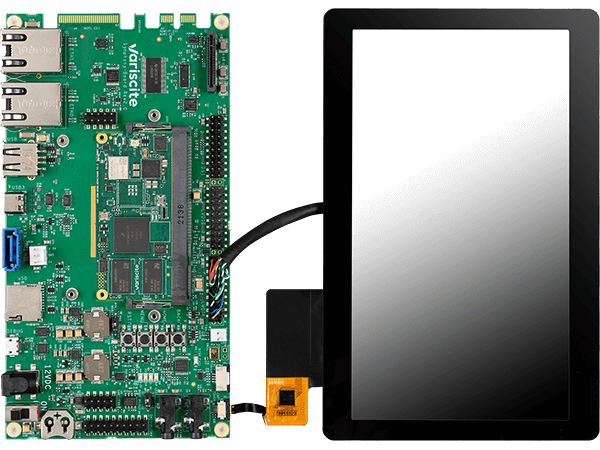

Development Kit
Included Carrier Board
Display

7" WVGA

Touch Panel

Capacitive

Micro-USB Debug Cable
Ethernet Cable
12V Power Supply
Antenna
Heat Sink
Boot/Rescue SD Cards
Carrier Board Design Package
Camera Module

Optional - VCAM-5640S-1ST

Optional - VCAM-5640S-1ST

Part number

VAR-STK-VS8M-NANO

VAR-DVK-VS8M-NANO

System on Module
CPU Name

NXP i.MX8M Nano

CPU Type

Cortex™-A53

CPU Cores

4

CPU Clock

1.5GHz

RAM

1 GB DDR4

eMMC

16 GB

Ethernet

10/100/1000 Mbps

Wi-Fi

Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n

Bluetooth

5.4 / BLE

LVDS

18-bit / 24-bit

Audio codec

Yes

OS support

Linux / Android

Temperature

0 to 70°C

CAN Bus

x1

Part number

VAR-SOM-MX8MNQ_V2_1500C_1024R_16G_AC_EC_LD_TP_CN_WBD_CT

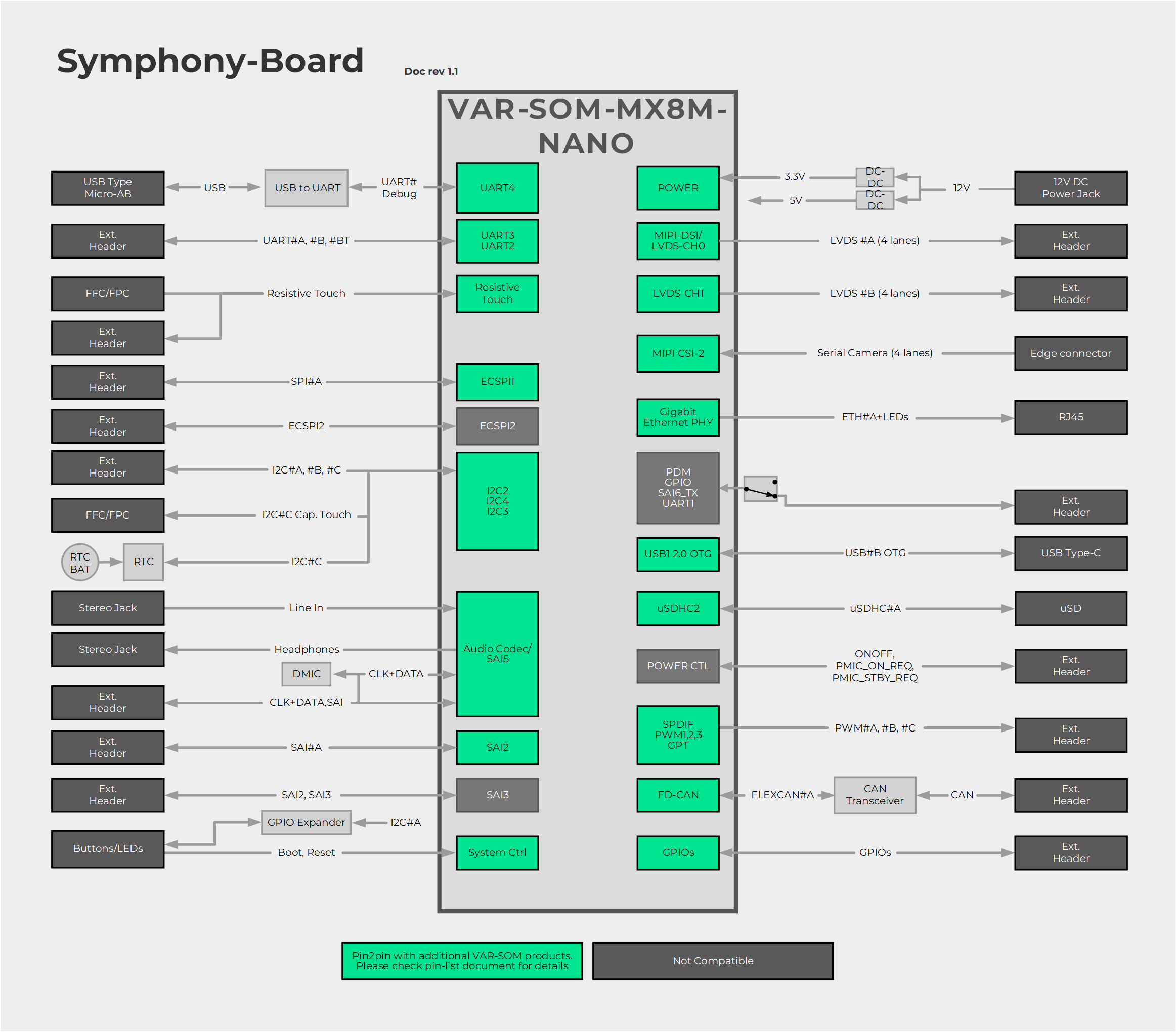

Symphony-Board
Carrier Board
SO-DIMM200

Supporting the VAR-SOM-MX8M-NANO

LVDS

2x Header, 18-bit / 24-bit

Backlight Driver

PWM Control

Capacitive touch panel

Capacitive touch panel (6-pin FFC/FPC)

Headphone

3.5 mm connector

Line - in

3.5 mm connector

Digital microphone

on-board

SD-CARD

SD Card Socket

CAN Bus

x1

Ethernet

10/100/1000 Mbps, RJ45

VAR-[STK / DVK]-VS8M-NANO_V2_[x]O
STK/DVK

STK: Starter kit
DVK: Development kit

[x]O

L: Linux, A: Android
