Specifiche

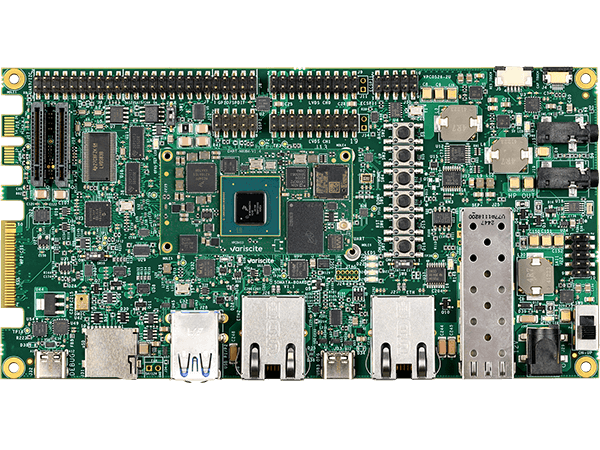

Starter Kit

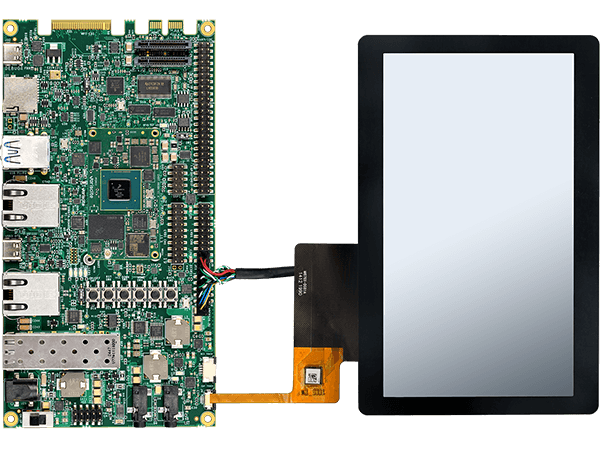

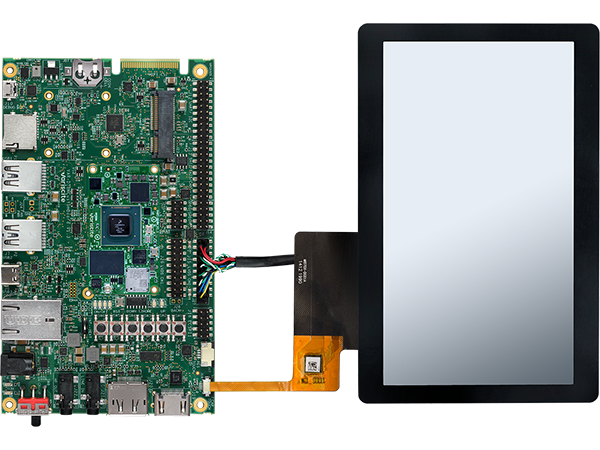

Development Kit
Display
7" WVGA
Touch Panel
Capacitive
Micro-USB Debug Cable
Ethernet Cable
12V Power Supply
Heat Sink
Boot/Rescue SD Cards
Carrier Board Design Package
Optional Camera Module
Optional - VCAM-5640S-DUO, VCAM-AR1335B, VCAM-AR1335E
Optional - VCAM-5640S-DUO, VCAM-AR1335B, VCAM-AR1335E
Part number
VAR-STK-DT8M
VAR-DVK-DT8M
System on Module
CPU Name
CPU Type
Cortex™-A53
CPU Cores
4
CPU Clock
1.5 GHz
RAM
4 GB LPDDR4
eMMC
16 GB
Ethernet
10/100/1000 Mbps Ethernet
LVDS
18-bit / 24-bit
Audio codec
Yes
OS support
Linux / Android
Temperature
0 to 70°C
Part number
DART-MX8MQ_1500C_4096R_16G_AC_EC_LD_CT

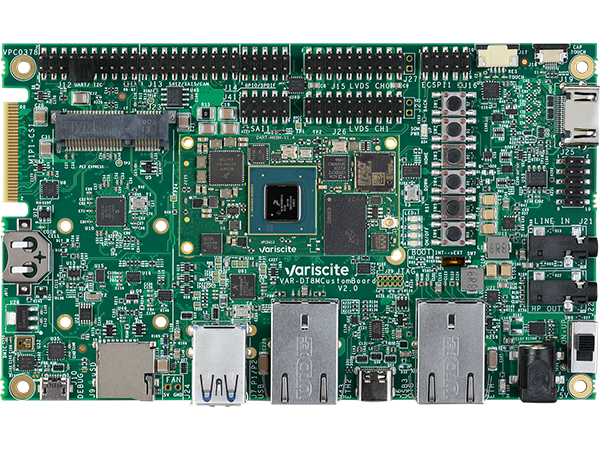

Sonata-Board
Carrier Board
B2B socket
Supporting the DART-MX8M
Headphone
3.5 mm connector
Line - in
3.5 mm connector
Digital microphone
on-board
PCI-Express
Dual M.2 M-Key vertical connectors
SD-CARD
SD Card Socket
CAN Bus
2x 10/100/1000 Mbps, RJ45
Ethernet
2x 10/100/1000 Mbps, RJ45
VAR-[DVK / STK]-DT8M_3G_[x]O
STK
Starter kit
DVK
Development kit
[x]O
L: Linux, A: Android
Ordina il prodotto online
Ti stai preparando all’entrata in vigore del Cyber Resilience Act?
Scopri come questa piattaforma aiuta la pianificazione CRA
Assistenza
Siamo con te passo passo, dal concept del prodotto al lancio... e oltre.
Assistenza gratuita e immediata direttamente dagli esperti R&D Variscite.
Collegamenti rapidi
Le nostre partnership di lunga data
I nostri stretti rapporti con i principali fornitori di tecnologia offrono ai nostri clienti un accesso in anteprima alle ultime soluzioni avanzate: i tuoi progetti partiranno da una base solida anche in prospettiva futura.
Why Variscite?

Qualità
Produzione in-house con controllo di qualità completo - certificato secondo gli standard medici ISO 9001 e ISO 13485.

Pin2Pin
Le nostre famiglie di prodotti Pin2Pin garantiscono la massima scalabilità e di poter passare senza problemi a tecnologie future senza riprogettare la scheda portante.

Longevità
Disponibilità hardware garantita per 15 anni e supportata da aggiornamenti software e assistenza continui.

Personalizzazione
Configura il tuo sistema con precisione e flessibilità: scegli solo le funzioni necessarie e taglia i costi.
Chiedi un preventivo personalizzato
Compila i campi di seguito e un nostro rappresentante ti contatterà a breve
La ringraziamo per averci contattato
Il nostro rappresentante La contatterà a breve
Visualizza altri prodotti
Aggiornamenti
Stay current with software updates – Keep your Variscite SoMs performing at their best with our latest software releases.
Adding TPM 2.0 to an embedded product usually starts with a hardware question: where does the security chip go? On Variscite’s i.MX-based modules, there is now another answer. Variscite and SecEdge are bringing SecEdge’s TPM 2.0 firmware, anchored in the processor’s own security hardware, to Variscite’s i.MX System on Module portfolio.

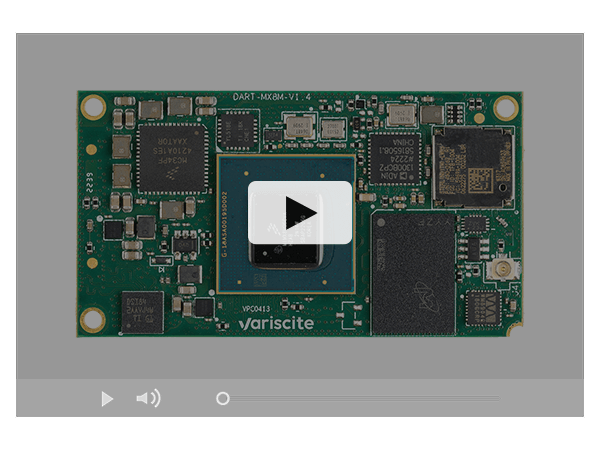

Watch the unboxing of the DART-MX8M Evaluation Kit powered by NXP i.MX 8M SoC and learn how to set up the kit step by step.
The DART-MX8M is a miniature System on Module / Computer on Module, only 30mm x 55mm. The SoM runs on NXP i.MX 8M Quad 1.5GHz ARM Cortex-A53 plus 266MHz Cortex-M4 and offers advanced multimedia capabilities: 4K video HEVC/H265/H264/VP9 decode with HDR, high-quality audio, 4K display support, and 2D/3D graphics acceleration.
The DART-MX8M is a member of the DART Pin2Pin product family, which provides a wide scalability range; from i.MX8M Mini platform, through the i.MX8M, up to the iMX8M-Plus.
The DART-MX8M is a miniature System on Module / Computer on Module, only 30mm x 55mm. The SoM runs on NXP i.MX 8M Quad 1.5GHz ARM Cortex-A53 plus 266MHz Cortex-M4 and offers advanced multimedia capabilities: 4K video HEVC/H265/H264/VP9 decode with HDR, high-quality audio, 4K display support, and 2D/3D graphics acceleration.
The DART-MX8M is a member of the DART Pin2Pin product family, which provides a wide scalability range; from i.MX8M Mini platform, through the i.MX8M, up to the iMX8M-Plus.
