Specifiche
Starter Kit

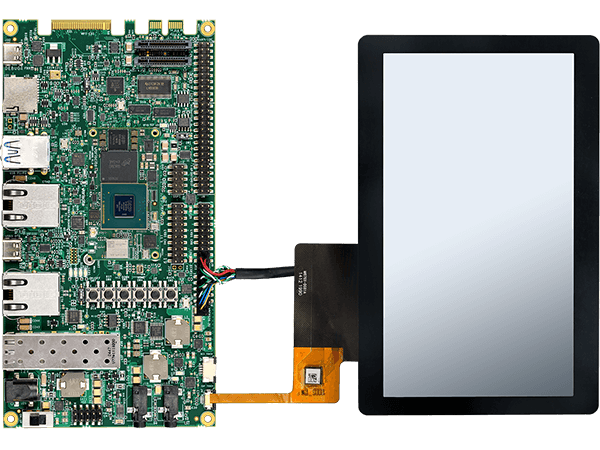

Development Kit
Included SOM
Included Carrier Board
Display

7″ WVGA

Touch Panel

Capacitive

Micro-USB Debug Cable
Ethernet Cable
12V Power Supply
Antenna
Heat Sink
Boot/Rescue SD Cards
Carrier Board Design Package
Optional Camera Module
Part Number

VAR-STK-DT95

VAR-DVK-DT95

System on Module
CPU Name

NXP i.MX95

CPU Type

Cortex™-A55

CPU Cores

6

CPU Clock

1.8 GHz

RAM

8 GB LPDDR5

eMMC

32 GB

AI/ML

2 TOPS NPU acceleration

Ethernet

2x 10/100/1000

Wi-Fi

Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n

Bluetooth

Bluetooth/BLE5.4

LVDS

Yes

Audio codec

Yes

Touch panel

Capacitive, Resistive

OS support

Linux / Android

Temperature

-25 to 85°C

CAN Bus

x2

Part number

DART-MX95H_1800C_8R_32G_AC_EC_WBD_CMP_ET

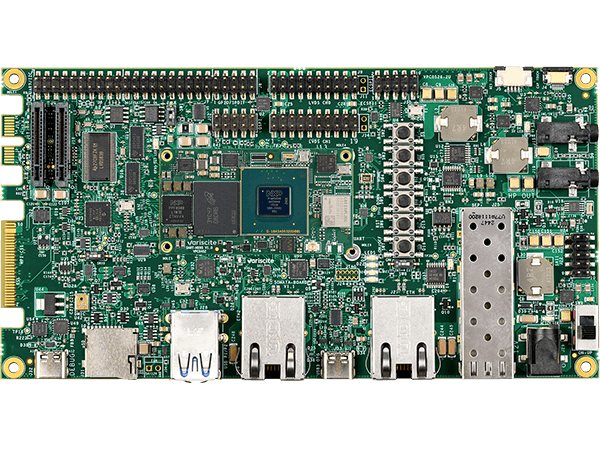

Sonata-Board
Carrier Board
B2B socket

Supporting the DART-MX91

Headphone

3.5 mm connector

Line – in

3.5 mm connector

Digital microphone

on-board

PCI-Express

Dual M.2 M-Key vertical connectors

SD-CARD

SD Card Socket

CAN Bus

2x 10/100/1000 Mbps, RJ45

Ethernet

2x 10/100/1000 Mbps, RJ45

DART-[STK / DVK]-DT95_LO
STK/DVK

STK: Starter kit
DVK: Development kit
