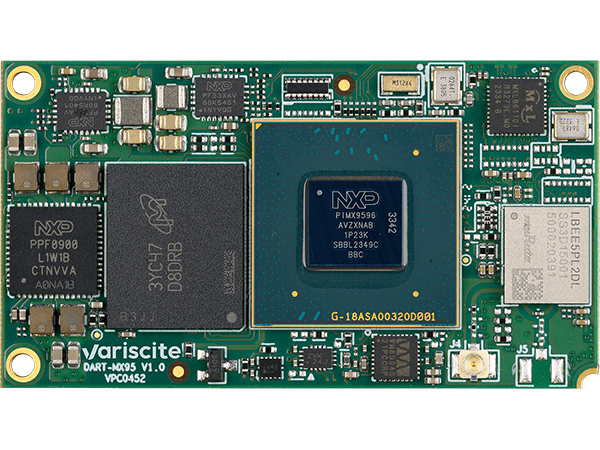

NXP i.MX 95
Cortex™-A55
4-6 cores
Up to 2.0GHz
800 MHz Cortex-M7
333Mhz Cortex-M33
2 – 16GB LPDDR5
8 – 128 GB
3D GPU with OpenGL® ES 3.2, Vulkan® 1.2, OpenCL™ 3.0
2D GPU
4Kp30 H.265 and H.264 encode and decode
2x MIPI CSI2
AI/ML NPU acceleration 2 TOPS
Yes
MIPI-DSI 4kp30 or 3840x1440p60
Dual 1920x1080 24-bit
Resistive, Capacitive
Yes
Digital, Analog (stereo)
5 x I2S(SAI),S/PDIF,RX TX, PDM 8CH, MQS
Yes
x1
USB 3.0/2.0 1x OTG; USB 2.0 1x Dual role
x8
x7
X1
x8
x5
On carrier
X1
X1
X2 Gen 3.0
x8
2x 10/100/1000 Mbps (2x Ethernet with TSN support)
1x 10 Gbps (Ethernet with TSN support)
Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n with optional 802.15.4
BT/BLE5.4
Yocto, Debian
Yes
Yes
55.0 x 30.0 mm
3.4V- 5V
3.3V/1.8V
0 to 70°C
-25 to 85°C
-40 to 85°C
-40 to 85°C
5% to 95%
CPU type:
6 Cores: H
4 Cores: Q
CPU clock speed: 2000MHz: 2000C, 1800MHz: 1800C
LP-DDR5: 2GB: 2R, 4GB: 4R, 8GB: 8R, 16GB: 16R
eMMC: 8GB: 8G, 16GB: 16G, 32GB: 32G, 64GB: 64G, 128GB: 128G
Audio Codec
GbE PHY on first ethernet port
WBD:
Built-in certified dual band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4
WBE:
Built-in certified dual band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 + 802.15.4
Default: Dual LVDS (#0 and #1) plus DSI
DSCM: LVDS #0, DSI in pin2pin compatible mode instead of LVDS #1
Export ADC lines
Instead of power pins, J3.15/27/34/63 are not connected for compatibility with other DART SoMs
Default: no extra SDIO
SDEX: extra SDIO port, available only when no WBD/WBE is selected
C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C
